Brand Name : VIANS
Model Number : TK-942
Certification : CE,ROHS,FCC
Place of Origin : CHINA
MOQ : 1pcs
Price : Negotiation
Payment Terms : T/T, ,PAYPAL
Supply Ability : 20000PCS/MONTH
Delivery Time : 3-7 Working days
Packaging Details : 10pcs/carton
Max. Current : 3A
Max. Voltage : 12VDC
Mechanical Life : 1000000, 500000 tested
Product Name : Infrared Exit Button
Material : Stainless Steel
Electrical performance : 3A@12VDC
Plate Thickness : 0.8mm
Working Temperature : 10℃-55℃ (14-131F)
Output Contact : NO\NC\COM

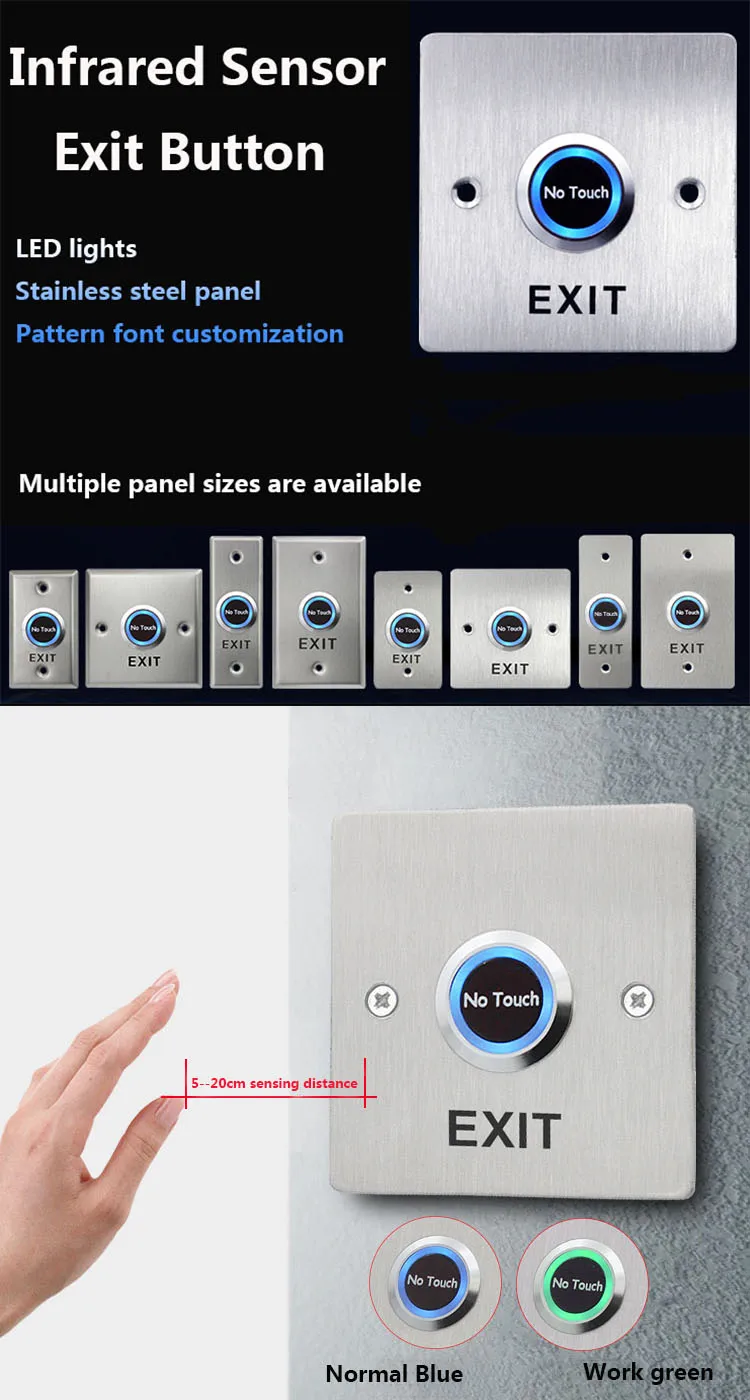

Stainless Steel Panel Touchless Door Release Button Wave Button
IR Sensor No Touch Touchless exit button is casted by 304 stainless steel. It’s easy-to-install and most frequently used in the access control systems. The superior design of the buttons and quality.
Technical Parameters:
A- Material: Stainless Steel
B- Plate Thickness: 0.8mm
C- Working Distance: 5-10cm
D- Input Voltage: DC12V
E- Electrical performance: 3A@12VDC
F- Output Contact: NONCCOM
G- Mechanical Life: 500000 tested
H- Suitable for Door: Hollow Door
I- LED Indicator
J- White LED indicator: Power OFF
K- Blue LED indicator: Power ON(standby)
L- Red LED indicator: Power ON(sensation)
M- Working Temperature: -10℃-55℃ (14-131F)
N- Working Humidity: 0-95%
O- Weight: 0.1-0.15kg
P- Packing: 1pc per box, 100pcs per carton
item | value |
Place of Origin | China |
| Guangdong |
Brand Name | VIANS |
Model Number | TK-942 |
Warranty | 3years |
Type | Exit button |
Certification | CE,ROHS,FCC |
Customized | yes |
Sensing Range | 5-10CM |
Whether the smart | no |
Product Name | Infrared Exit Button |
Material | Stainless Steel |
Working Distance | 5-10cm |
Electrical performance | 3A@12VDC |
Mechanical Life | 500000 tested |
Plate Thickness | 0.8mm |
Input Voltage | DC12V |
Output Contact | NONCCOM |
Working Temperature: | 10℃-55℃ (14-131F) |
Company Profile
![]() |
Stainless Steel Panel Touchless Door Release Button Wave Button Images |
